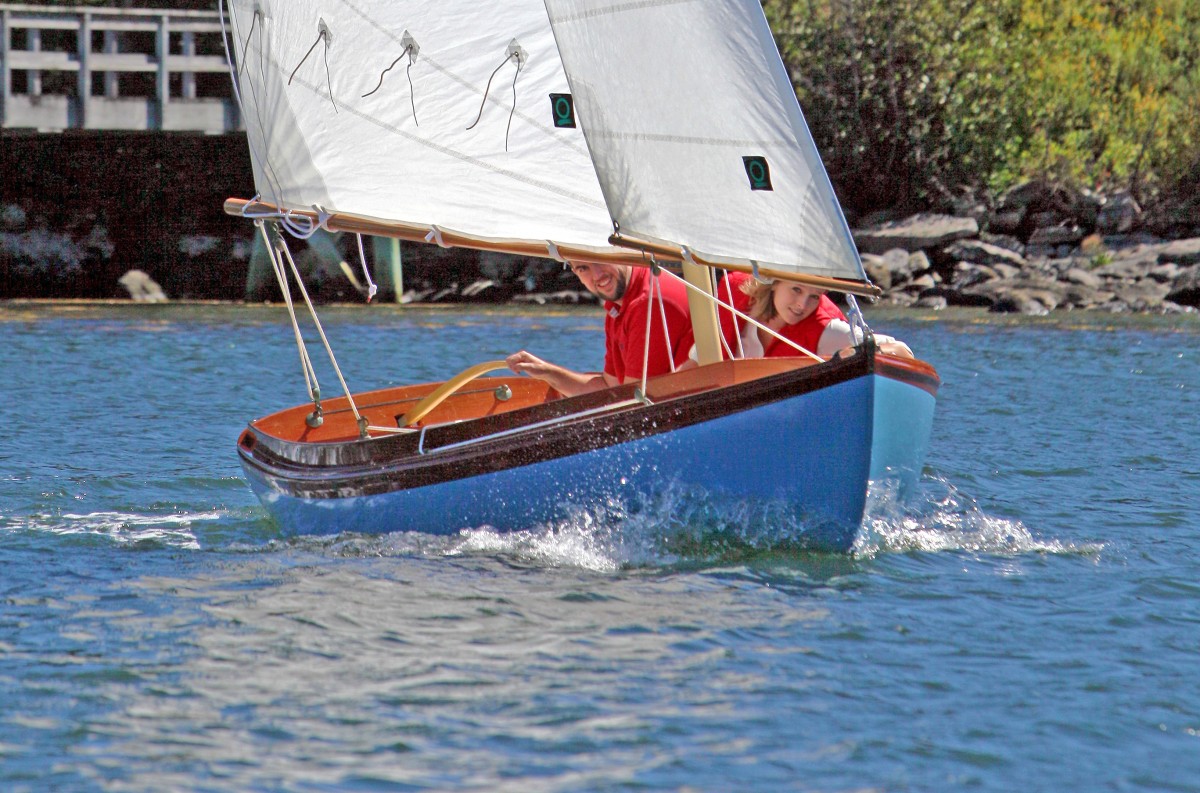

The PAINE 14 is a slightly scaled-down adaptation of the venerable and much-loved Herreshoff 12½ with a fin keel and separate rudder for significantly more lively performance. She is available in beautifully detailed hand-built WEST epoxy cold-molded wood construction from French & Webb in Belfast, Maine. At approximately 10% smaller in length, breadth and depth, she preserves much of the “big boat” feel of her predecessor thanks to a lead ballast keel that accounts for nearly half her entire weight, but is optimized for easy trailering, maintenance, launch and retrieval, and home-stowage in your garage, on your boat-lift, or the boat deck of your motoryacht. The prototypes shown in these photos have been built and tested, many small refinements have been made, and the boat is now in a word, perfect. The PAINE 14 may be either gaff or marconi rigged though for quick setup and takedown and an edge in performance, the latter is preferable.
The PAINE 14 is in every possible way optimized for trailering behind a standard-sized automobile. Her carbon fiber mast requires no stays and weighs with its halyards a mere 20 pounds, so it is as easy to deploy as that on a Laser dinghy. Easier, actually, as the sail need not be attached before stepping the mast. We have invented a nifty way to attach the sails to the spars very quickly… no tedious fitting of little slides to little tracks, so the boat can be launched and gotten going in a matter of minutes.
The simple Velcro-strap attachments render obsolete tracks and slides, and mast hoops, with all of their expense and tedium, and make getting a small boat rigged and sailing almost instantaneous.
RIGGED STANDARD WITH “PAINE DVT” ROLLER- REEFING, SELF- VANGING SYSTEM!
The Paine 14 is the first yacht ever fitted with the PAINE DVT jib-vanging system. Until now all jibs, and jibs set on jib- booms especially, had the annoying habit of losing effectiveness as the jibsheet is paid out. The jib clew would rise, rather than rotate around the headstay as one would prefer. When this happens the lower part of the jib is overtrimmed and stalls, while the upper part is let out too much and loses all its drive.
The PAINE DVT invention consists of a series of fiberglass battens, fitted parallel to the luff, and extending from the leech to the foot of the sail. These battens both stiffen the leech of the sail as do other battens, but in extending to the foot of the sail prevent it from rising. (Note some other photos in this website show the older, conventional jib).
Make no bones about it, though, inidividually hand-built by the few remaining American craftsmen with nearly half of its weight in cast lead ballast and lots of beautifully varnished mahogany trim, this is in every respect, including its construction cost and the need for yearly maintenance, a true yacht of the old school. But you don’t need a mooring or a marina slip with this one, just a garage, boat deck, or boathouse. Her cruising grounds are anywhere you might like to sail that has a launching ramp, or anywhere your motoryacht might transport her.
MIND THE GAP!
This design has a balanced rudder, making it exquisite to helm. This means that some of the rudder blade area is forward of the pivot axis. This is great for the helm balance, but since the aft end of the boat has deadrise, as soon as the rudder is swung off-center, a gap opens up between the rudder and the hull. It’s like a forward facing pair of scissors.
One week this past summer I took my friend Dennis sailing. It was blowing pretty hard, and just as I cast off the mooring a gust caught us on the wrong tack, forcing us to sail over the dinghy painter which was tied to the mooring float. Needless to say, in she went, and almost immediately we were tethered stern to wind, and a lot of it. The forces involved are huge. There was no choice but to wrestle the mainsail down- no small feat- and roll up the jib to remove the pressure. Then fish around underwater with the boom crutch to finally release the jammed rope, near the point of exhaustion. Not exactly a day of elegant relaxation on the water.
Then just to drive the point home we sailed over a lobster pot line an hour later and did the same thing all over again!
I was determined that this would never happen again. I considered the other ways that have been used to mitigate the problem: A windsurfer fin installed just forward of the rudder, or pieces of shock cord that stretch across the open maw- but neither is entirely proof against a jam for as we all know on a sailboat, if anything possibly can go wrong, it will! So I have invented an absolutely jam-proof solution to the problem. Since many other designs have the combination of a balanced rudder and veed hull, I offer my solution for your benefit. It will be fitted to all Paine 14s and York 18s and any similar yachts I might design in the future.
What I did was to swing the rudder off-center to its maximum possible turning angle. Then I extended the top of the rudder up until it just cleared the hull at this angle. Of course then when you articulate the rudder toward the centerline there is a hull in the way. This I carved away into a section of the surface of a cone, such that the top of the rudder just “sweeps” the concave cone with a paper-width of clearance- far too little for anything to force its way into the gap.
It works great. The amount of turbulence created by the little discontinuity is trivial. And no more embarrassing and potentially dangerous rudder jams!
|BALLAST (LEAD||395 lb|
|SAIL AREA||99 sq ft|
What the world needs now is certainly not more boats, but manifestly far better ones that truly enhance their owners’ lives. You can’t give away old fiberglass boats today, and with good reason. But despite the economic crisis, the few classic sailing designs of obvious and lasting merit are the unique bright spot in boating that makes sense today, and the PAINE 14 is the most beautiful example of this emerging phenomenon. We believe the times are right for a small, classy, easy to get going and transport, investment quality mini-yacht that unlike virtually anything currently available in fiberglass, will be loved for its entire lifetime by its owner and left to his kids and by them to their kids. With reasonable maintenance, It’s built to last that long.
The boating field today is experiencing a wholesale “flight to quality” and flight from consumer-crap. Do we still really believe that a molded fiberglass hull glued to a molded fiberglass deck, with ugly extruded aluminum spars, no varnished wood, and not an ounce of lead to keep it upright, cheap as that may be to produce, is a yacht? A cogent few of today’s water-lovers are choosing to spend their leisure time in something of intrinsic quality, beauty and unquestionable value. The PAINE 14 provides the sensible alternative that truly enhances the lives of those privileged enough to afford time spent aboard her, and its classic design will endure long enough to become a family heirloom.
Shallow draft, heavily lead-ballasted, with moderate wetted surface and a NACA-foil laminar flow keel, the PAINE 14 is delightfully fast and easy to handle, store, and trailer to a new destination every summer weekend, or await your whim on her crane.
A TRAILERABLE MINI-YACHT
In a single phrase, the PAINE 14 is “A TRAILERABLE MINI-YACHT.” The yacht is light enough to be easily trailed behind a moderate sized automobile—no truck or SUV or surge brakes are required. The first one, named “Redwing”, was built in New Zealand to fit perfectly on the deck of her owner’s 72-foot Paine designed motoryacht. It would be the perfect little yacht for a Floridian with a boat-lift and a few feet of water at low tide. A custom-fitted galvanized trailer with integral tongue-extender makes launching and retrieving a snap. The carbon fiber mast requires no stays and is simply swung up into a custom bronze retainer fitting in a matter of seconds. Unlike a Laser, or any other unballasted dinghy, she is impossible to capsize, and easy to sail mile after mile without athletic ability. You sit “in” her, not “on” her, and there is no need for “hiking out”—you sit on bench seats with properly angled seatbacks (coamings) at just the right height. In enough wind, of course, she could be swamped but has forward and aft flotation tanks to keep her afloat. And in the off-season she fits right into your garage where you can perform the yearly maintenance yourself at near negligible expense, and proudly show her off to your dinner-guests.
UNSINKABLE, AND SELF-RESCUING.

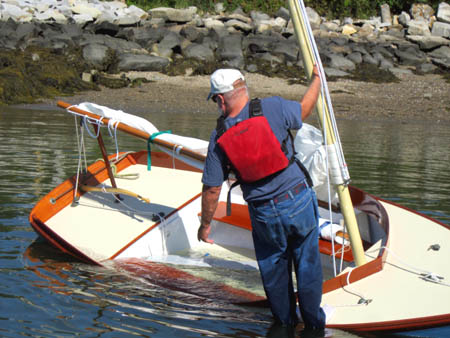

Just how safe is a PAINE 14? To find out we conducted an intentional swamping on August 30, 2013. Would she turn turtle, or go to the bottom? Chuck tried to swamp her by standing on the gunwale and leaning out as far as he could, hanging onto the mast. At 190 pounds and rocking the boat violently, the coaming tops could not be gotten under water. Only by bailing the ocean in could he finally swamp her. She floated with the lowest point of the coaming 10 inches above the surrounding water, and was very stable. You could sit in the boat all day long like this and she would not sink. Though like Chuck, you might eventually decide to bail her out, raise the mainsail, and sail away.
The performance of the PAINE 14 is, as one might expect from her numbers, downright stimulating. The helm is nicely balanced in both light airs and heavy. Its acceleration in a puff is amazing―in less than a boat length it accelerates to hull speed. With the full jib and a reefed main, it can handle 20 knots of wind. And in stronger winds, she can be sailed under complete control without the jib- an extremely rare capability amongst today’s fleet of small boats. This is also helpful in picking up a mooring or coming alongside a dock. You can roll up the jib first, clearing the foredeck and its mooring cleat of the nasty slapping jib-boom, and get safely cinched up with a clear field of view.
Those who have read Chuck Paine’s book on yacht design will recall that one of his bugaboos in the latter years of his career was self-rescue. If you fall overboard on even a yacht of low freeboard like this, it is impossible to get back aboard. You can imagine the potential consequences. So Chuck made the decision that no future design of his would lack this important capability. The PAINE 14 is fitted with a simple step on the trailing edge of the rudder. You never know it’s there until you need it. But if you ever do, you’ll thank its designer a thousand times over.
ONE PERFECT POSSESSION
We believe the ethic of filling multiple houses, then rented storage containers with unloved and unused material objects, with all of the environmental damage and unserviceable debt that this entails, is in precipitous decline—hence the “Great Recession”. The wiser among us will build their future lives around ONE PERFECT POSSESSION. For those who revel in exploring remote locales without the noise and expense of internal combustion, it’s time accept the reality of the 21st century, rid yourself of that unused leviathan you can no longer afford nor find crew to operate, and join the renaissance in easily usable sailboats of eternal beauty. Though far from cheap, you can commission a PAINE 14 for what you pay in a few years’ maintenance and storage fees for your unloved thirty-something foot white elephant, and you’ll actually USE your PAINE 14, as will your progeny!
The yachts are available only in hand-built cold-molded wood, and you can have a local boatyard build one from the plans. In any case the yachts will be beautifully hand- finished with a great deal of varnished wood to look as beautiful of those from the past century. The first example, “Redwing”, cost her owner more than $100,000 to build in 2007. But she had a technically challenging and supremely expensive removable keel to fit more comfortably on his motoryacht. My new company built one in 2010 for a bit less, and it is offered for sale below. A custom-designed galvanized Triad trailer with integral tongue extender will enable the yacht to be easily launched on reasonably angled ramps. Its price is US$ 3000.00 plus shipping to your destination from Raleigh, SC.
CHUCKPAINE.COM LLC’s hand-built WEST system cold-molded demonstrator Amelia is offered at a price of $65,500- a significant concession below its cost- including:
- Beautifully cut Quantum mainsail with single reef, four battens
- Quantum Jib with Paine DVT batten system on Sitka Spruce jib-boom
- Awlgripped, wood colored, Forte brand carbon fiber mast
- Varnished Sitka Spruce boom.
- Awlgripped beautifully sculpted ash tiller
- Varnished mahogany seats
- Varnished mahogany transom, gold leaf name.
- Varnished mahogany cockpit coamings
- Varnished mahogany boom crutch and bronze deck socket
- Varnished mahogany sculpted wale strakes
- Varnished mahogany toerails and halfrounds of the Herreshoff fashion.
- Authentic antique bronze cleats, bow chocks, bow strap and blocks
- Varnished canoe paddle
- All necessary cordage
- Hand bailer
- Two fenders
- Two adult size life jackets
- Galvanized Danforth anchor and nylon rode
- Automatic self-bailing system with motorcycle battery which removes rain for the entire summer.
- And the most beautiful paint job you have ever seen on a boat in durable Alexseal Linear Polyurethane
ALSO AVAILABLE: The boat TRAILER is priced separately as much of the interest in the Paine 14 seems to be for stowing on the deck of your motoryacht, in which case a trailer is not needed. Price $3750.
- TRIAD brand custom fitted galvanized trailer, including:
- Drop axle
- Tongue extender
- Spare tire on custom bracket
- Hold- down board, with ropes. Also has padded block to receive the mast.
- Includes delivery from the factory to the boat in Maine
- You may choose from either a gaff or Marconi rig. The hull lines pay respectful homage to Nat Herreshoff’s wonderful 12½, but with flatter deadrise, lighter displacement and a true NACA foil fin keel. Construction is of WEST-system cold-molded wood with extensive varnished trim.
The editors of SAIL Magazine know excellence when they see it. The PAINE 14 was chosen “Best Boats of 2014” in the daysailor category. FRENCH & WEBB of Belfast, Maine, builds the boats domestically in extensive varnished mahogany trim, of WEST System cold- molded wood. Or if you live abroad you may hire your local boatyard to build one for you.
Click here to see what SAIL Magazine had to say:
Further information may be obtained from:
CHUCKPAINE.COM LLC P.O. Box 114, Tenants Harbor, Maine 04860-0114
For the benefit primarily of offshore aspirants we offer the building rights and very detailed plans and loftings. Study plans are available at a cost of $25.00 quickly emailed to you in pdf format, and full printed plans including a full-size mylar hull lofting and the right to build for US$ 1500.00
We suggest that amateurs not attempt to build the boat… there are many parts and hard-won techniques involved and this yacht is anything but easy to build! The plans are intended to enable legitimate admirers to have theirs built by a local professional boatbuilder. The materials alone to build this boat will cost you over US$ 25,000!
This design is featured in both of my recent books; MY YACHT DESIGNS and the Lessons they taught me, and THE BOATS I’VE LOVED- 20 Classic Sailboat Designs by Chuck Paine. Both are beautiful, full colored, first class books which give you lots more information on this design, and can be purchased on this website.
A full set of study plans is available for $25 emailed to you in PDF format.
PDF Plans: $25- no shipping, sent via email
